SUNBELLY OUTDOOR SYSTEMS

Sunbelly Space Studio

Design your outdoor space. See it in 3D.

01 Your installation

Installation type

Deck mounting: structural wood screw sets · SB-SCRW-4.

Outside dimensions

WidthDepth

Deck shape

02 Choose an edge

Click the panel in the rendering to select it, then choose its new profile under Your screens.

Edge A16′ 0″

4 / 4 screens

Position along edgeKeep clear at end · inches

Add access with a gate

Black 40″-wide frame with your selected screen. Added after the fixed screens, before any cut panel. Adding a gate replaces fixed screens if needed.

Estimated gate opening—confirm before installing posts. Hinge/latch clearances and swing space require confirmation. Preview shows the gate closed.

Finish with a cut panel

Add a Standard Solid panel at the end of this run. Its source screen, L-bracket set, additional post and mounting set are calculated automatically. One flat bracket is allowed for the cut edge.

Finished panel width · inches

Confirm final measurements and cut-edge finishing with your retailer. One full Solid screen is allowed per cut section; offcuts are not reused automatically.

Connect around a corner

Both runs meet at one post. Unused space stays at the open ends. A run connected at both ends must fit exactly.

Reserve space for stairs or a walkway. Orange dashes mark reserved openings. Edges run clockwise from A.

03 Your screens

Change profile for

Choose a profile for all screens on edge A, or click one panel in the rendering to change it individually.

Screen height · entire project

Finish · entire project

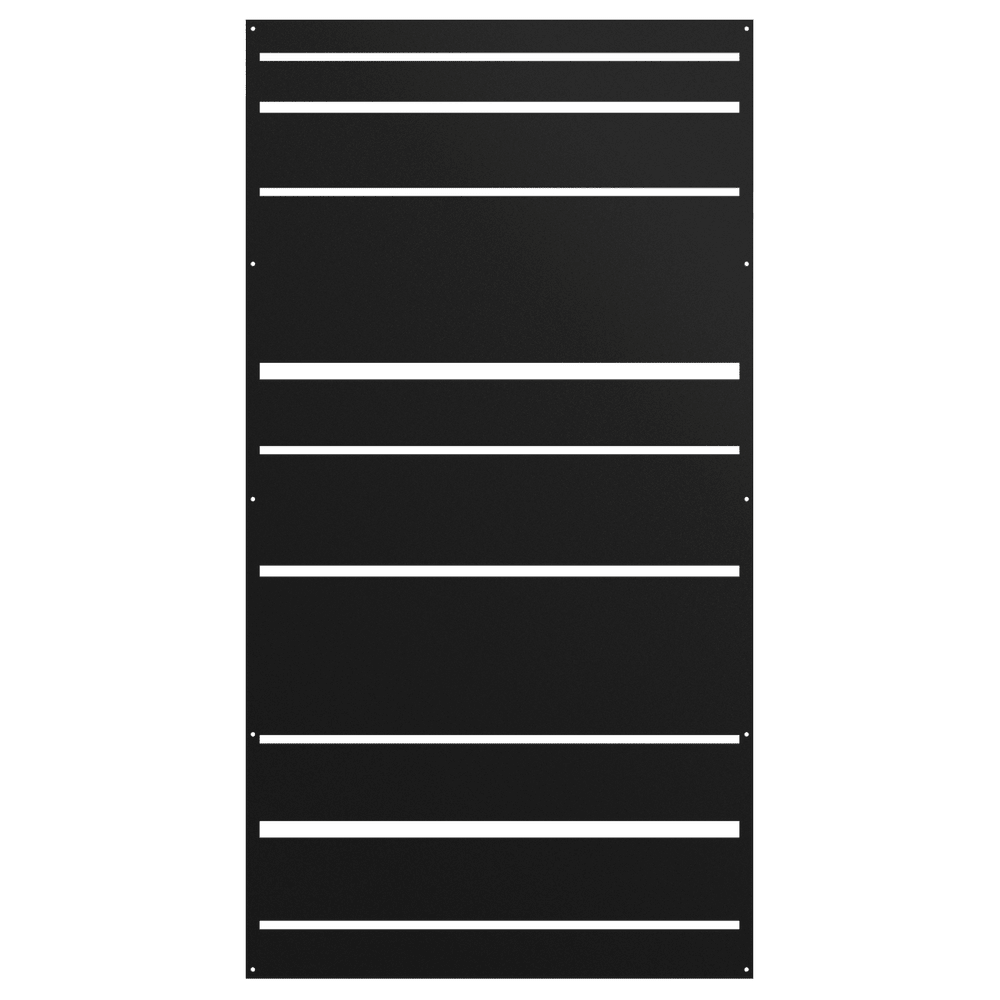

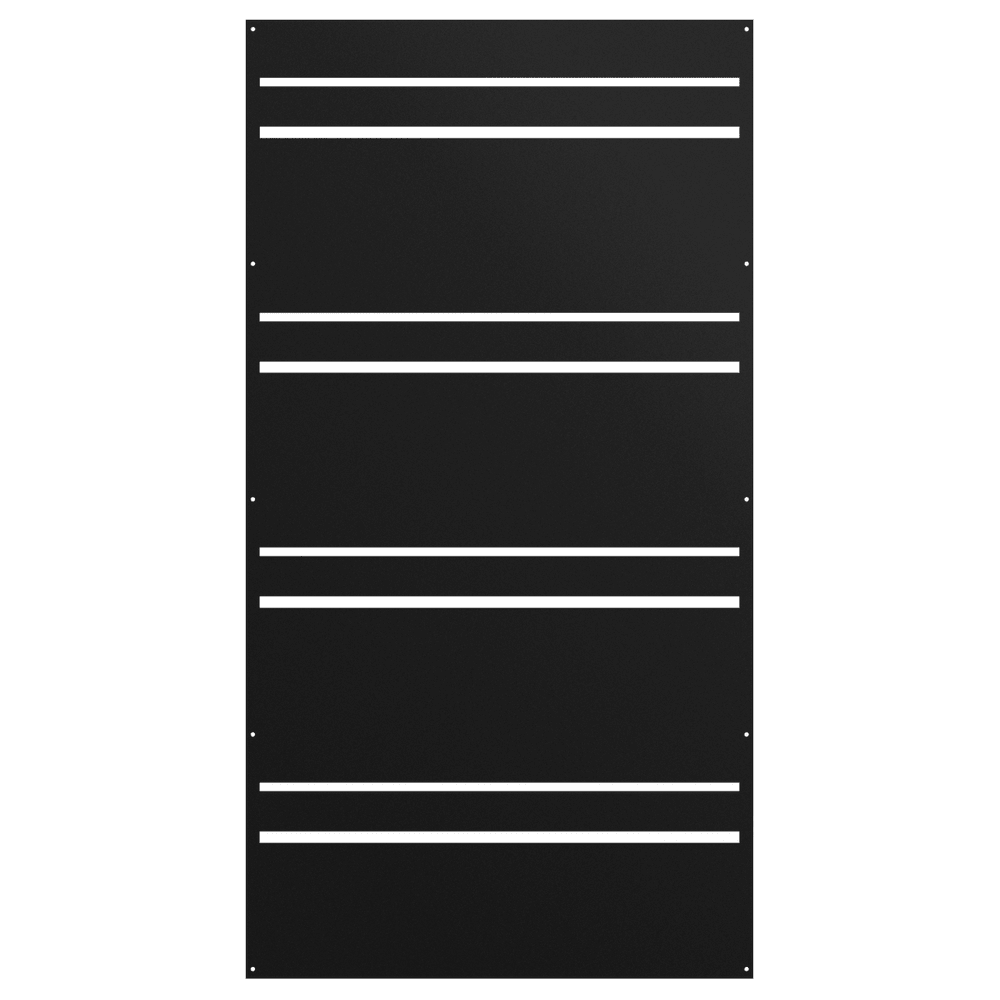

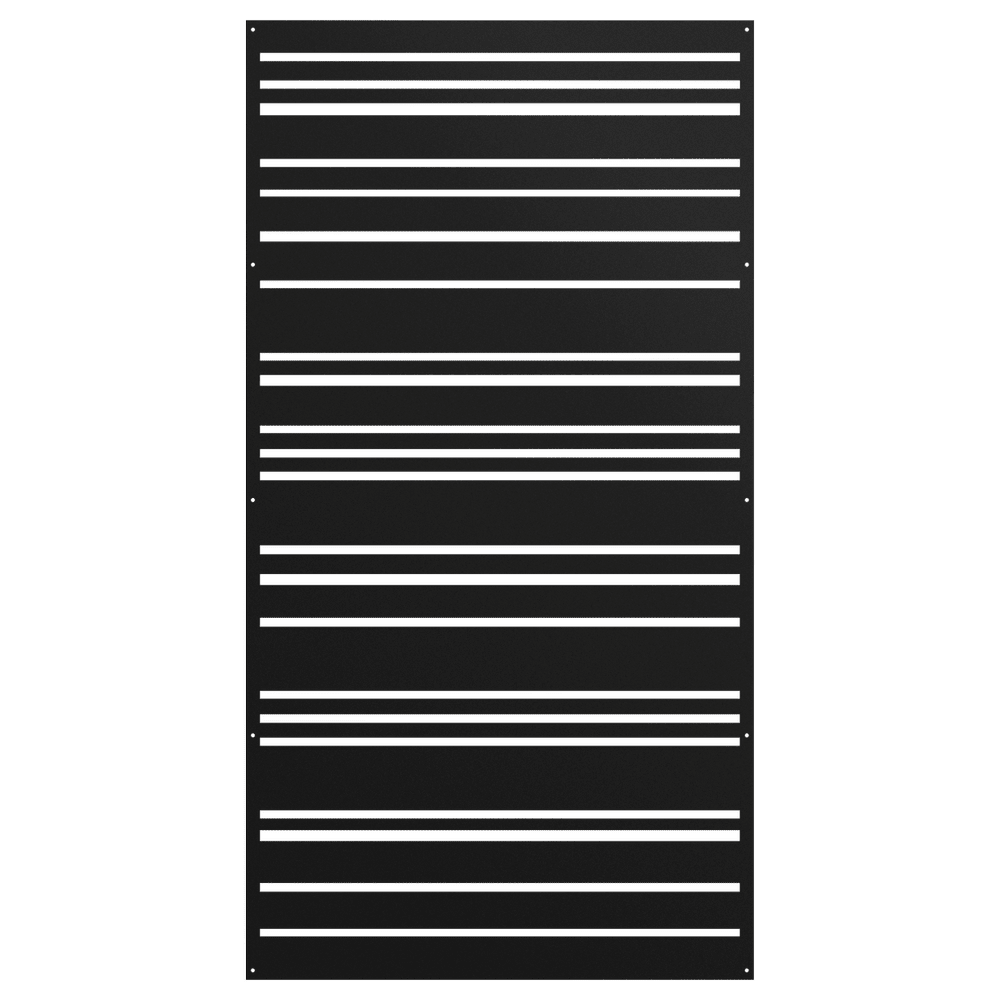

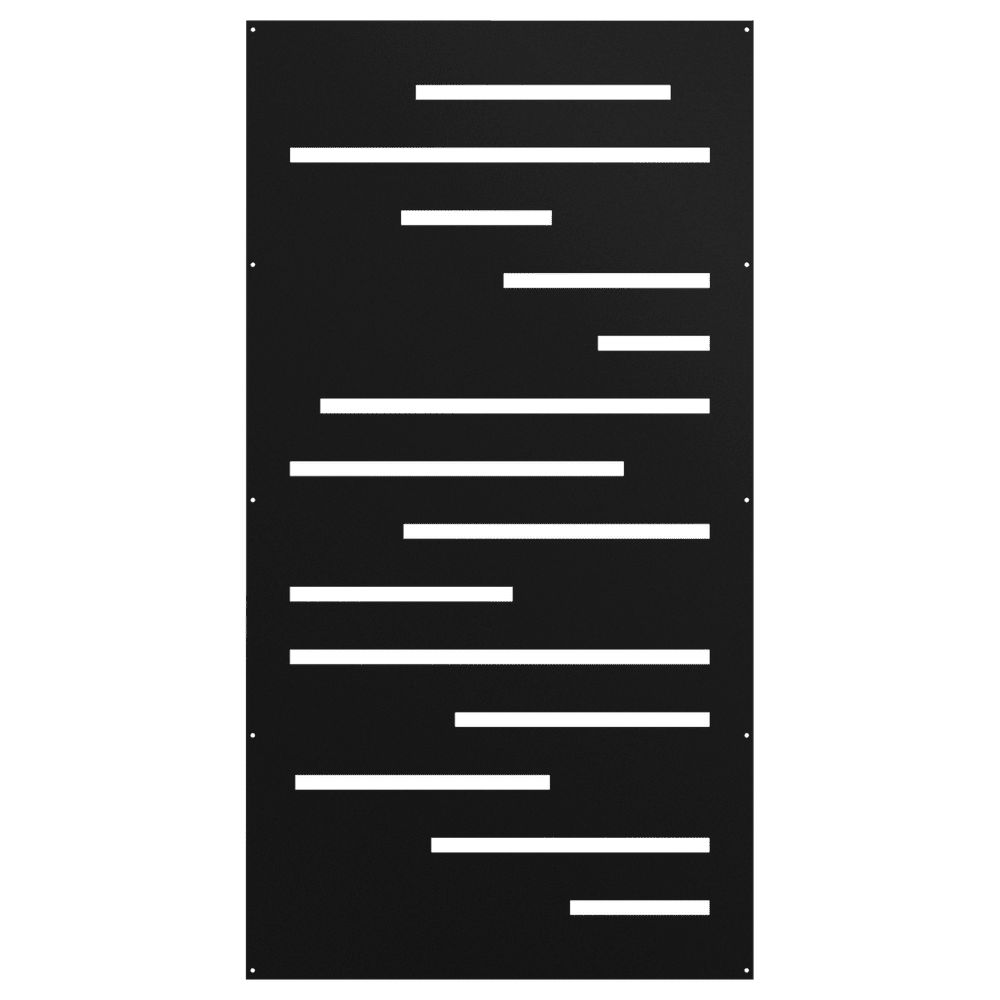

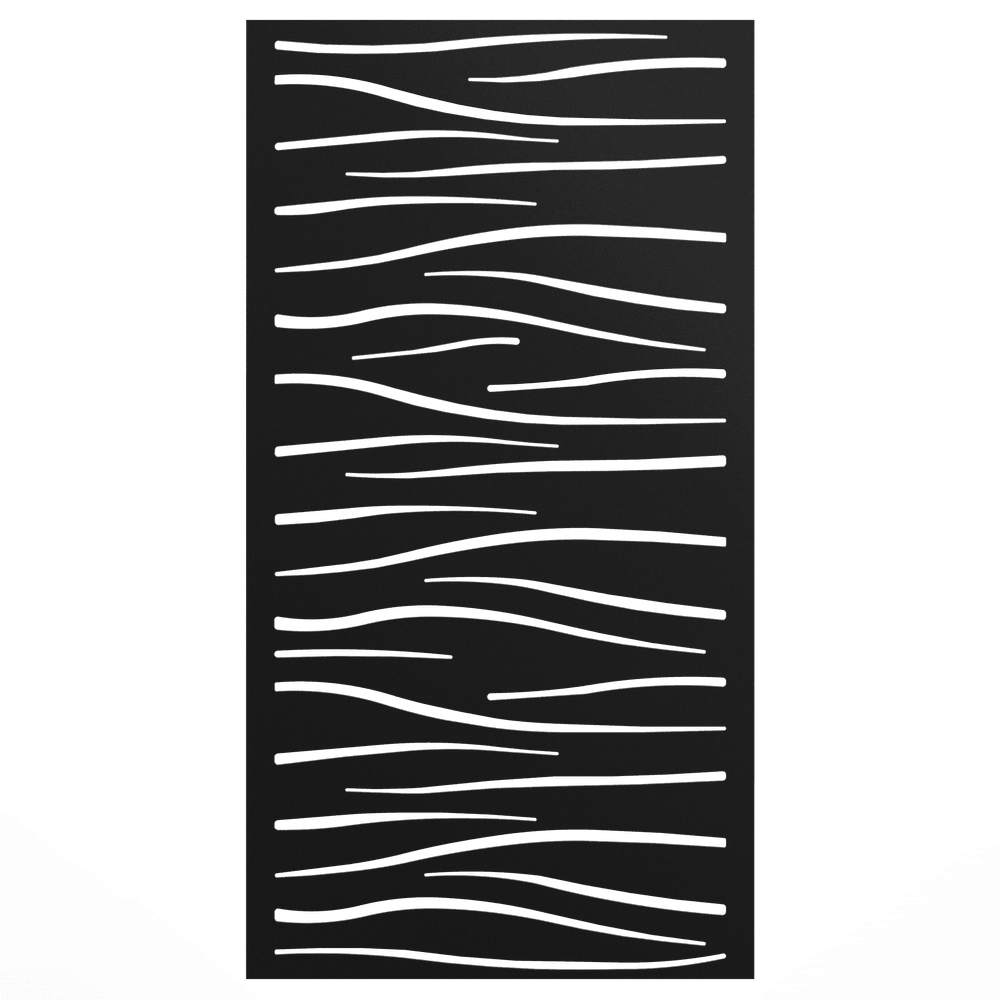

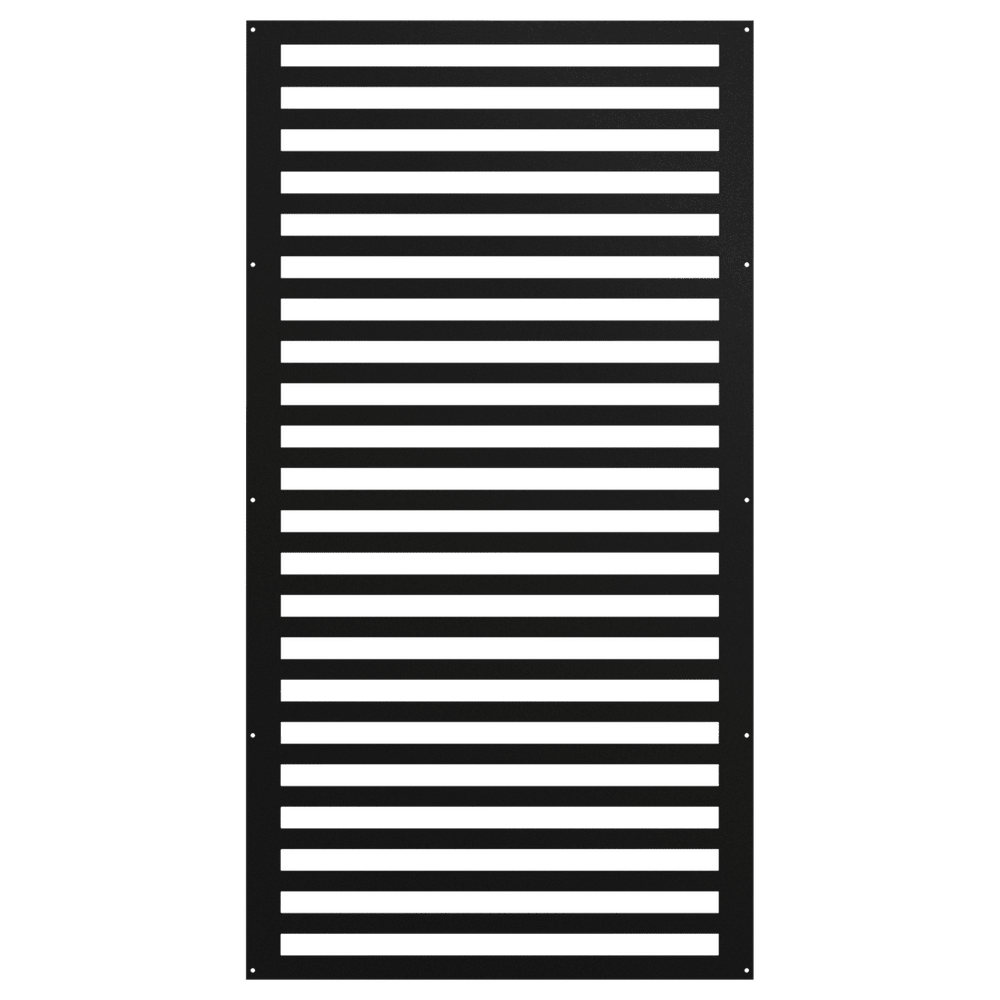

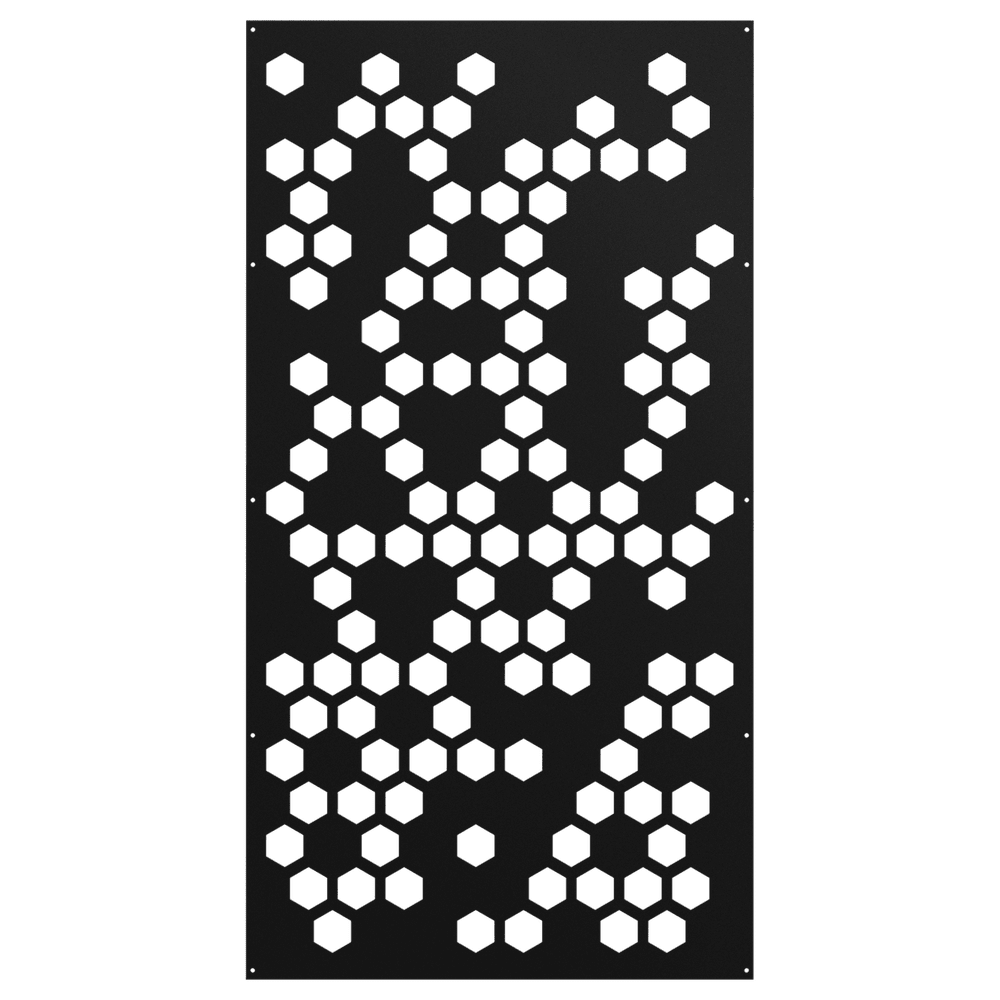

11 Standard patterns · 7 Shorty patterns. Finishes follow the current Sunbelly catalogue.

Click a panel to change its profileSelect a panel in the rendering, then choose a profile on the left.

16′ 0″ × 12′ 0″Standard · Black

Drag to orbit · + / − to zoom · Scroll to move page

EDGE A13′ 5.5″ installed2′ 6.5″ remaining + 0′ 0″ reserved

YOUR PROJECT

Project name

7Screens

9Posts

14Brackets

Ready for your retailer

Print your layout and itemised shopping list. Your local store can confirm availability and installation details.

Your parts list

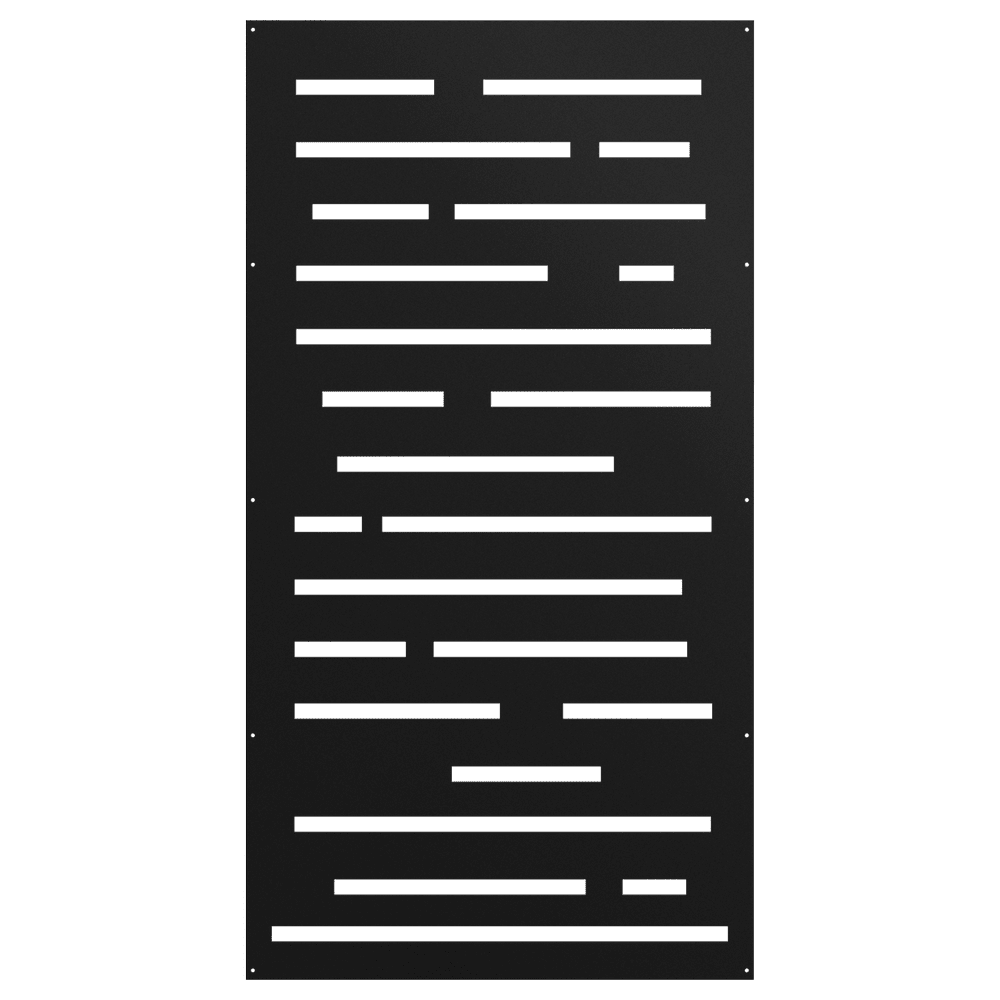

7 × Blurred Lines Standard · BlackSB-BLUR-BK

9 × 72″ post set · Black (1 post, 1 cap & 1 skirt)SB-POST-72-BK

7 × Standard L-bracket set · Black · 2 brackets + attachment hardwareSB-LBRK-68-BK

9 × Post screw set · 4 screws · wood/compositeSB-SCRW-4

Included in those sets

9 × Post capsIncluded with post sets
9 × Post skirtsIncluded with post sets
14 × L-bracketsIncluded with l-bracket sets
36 × Structural wood screwsIncluded with post screw sets

L-bracket attachment hardware is included with the bracket sets. Included parts do not need to be ordered again.

Each run shares its intermediate posts. 0 shared corner posts counted once. Caps and skirts are included with post sets.

Before ordering

Confirm this parts list with your retailer. Confirm mounting, corners, bracket compatibility and installation details with Sunbelly. Gate clearances, ground mounts, spacers and U-channel assemblies require a separate retailer review.

Watch the Standard installation video Find a Sunbelly retailer

Sunbelly Space Studio

My backyard retreat

16′ 0″ × 12′ 0″ · Black · 68″ panels · wood mounting

Retailer shopping list

Item	Order qty	Primary pieces	Product code
Blurred Lines Standard · Black	7	7	SB-BLUR-BK
72″ post set · Black (1 post, 1 cap & 1 skirt)	9	9	SB-POST-72-BK
Standard L-bracket set · Black · 2 brackets + attachment hardware	7	14	SB-LBRK-68-BK
Post screw set · 4 screws · wood/composite	9	36	SB-SCRW-4

Included with post sets: 9 posts, 9 caps and 9 skirts. Bracket sets contain 14 brackets plus attachment hardware. Mounting kits contain 36 screws.

Shared corner posts: 0. Connected edges: None selected.

Layout measurements

Edge	Screens	Installed	Remaining	Reserved opening
A	4	13′ 5.5″	2′ 6.5″	0′ 0″
B	0	0′ 0″	11′ 6.5″	0′ 0″
C	0	0′ 0″	15′ 6.5″	0′ 0″
D	3	10′ 2.5″	1′ 9.5″	0′ 0″

Planning estimate, not a structural drawing. One standard run = panel count × 39″ + 5.5″ skirt allowance. Verify dimensions, corner connections, fasteners and installation requirements with Sunbelly. Catalogue checked September 6, 2026. Colours are indicative; confirm your finish with a sample.

Bring this plan to your Sunbelly retailer. No purchase is made through this planner.
